anoid::base::Object Class Reference

#include <object.hh>

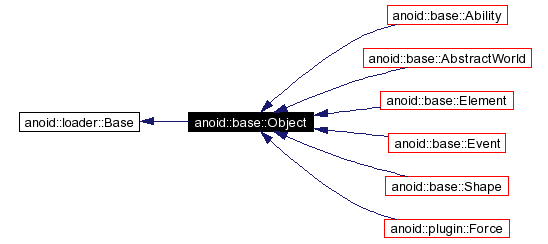

Inheritance diagram for anoid::base::Object:

[legend]Collaboration diagram for anoid::base::Object:

[legend]List of all members.

Public Methods
Object *	getParent ()
AbstractWorld *	getWorld ()
virtual Object *	add (Object *o)
	Object (int i=0)
virtual void	init (config::Configuration &c)
virtual void	update ()
virtual void	redraw ()
virtual void	receive (Message *m)
void	listen (const std::string &m)
Protected Attributes
int	ID
Object *	parent
AbstractWorld *	world
std::vector< Object * >	children

---

Detailed Description

Base object. It takes care of anything concerning configuration and the simple composite and observer structure.

Definition at line 28 of file object.hh.

---

Constructor & Destructor Documentation

anoid::base::Object::Object (  int    i = 0 )

Construct a new Object Parameters: i  give the object a fixed ID Definition at line 22 of file object.cc. References anoid::simple::i(), and NULL. Referenced by anoid::plugin::Force::Force().

---

Member Function Documentation

Object * anoid::base::Object::add (  Object *    o )  [virtual]

Add an object to this object (+ set up parent and world) Parameters: o  the object to be added Reimplemented in anoid::base::Element. Definition at line 11 of file object.cc. References children, anoid::base::AbstractWorld::getFreshID(), ID, NULL, parent, and world. Referenced by init().

Object* anoid::base::Object::getParent (    )  [inline]

getParent Returns: the parent of the current object, or NULL if this is the root element Definition at line 38 of file object.hh. Referenced by anoid::plugin::Force::Force(), and anoid::base::Ability::init().

AbstractWorld* anoid::base::Object::getWorld (    )  [inline]

getWorld Returns: the world (root element) of the current object Definition at line 42 of file object.hh. Referenced by anoid::plugin::Force::Force(), anoid::plugin::Gravitation::getApplicationPoint(), anoid::plugin::Rotation::init(), anoid::plugin::Move::init(), anoid::plugin::Box::init(), anoid::base::Ability::init(), listen(), anoid::plugin::Scale::redraw(), anoid::plugin::Position::redraw(), anoid::base::Element::redraw(), anoid::plugin::Box::redraw(), anoid::plugin::Velocity::update(), anoid::plugin::SpinVelocity::update(), anoid::plugin::Dynamics::update(), and anoid::plugin::Acceleration::update().

void anoid::base::Object::init (  config::Configuration &    c )  [virtual]

This is the real initialiser. It should take it's parameters from the provided configuration Parameters: c  the configuration describing this object and it's children Reimplemented in anoid::base::Ability, anoid::plugin::Acceleration, anoid::plugin::Alpha, anoid::plugin::AscShape, anoid::plugin::Box, anoid::plugin::Color, anoid::plugin::Dynamics, anoid::plugin::Mass, anoid::plugin::Move, anoid::plugin::anoid::Pad, anoid::plugin::Position, anoid::plugin::Rotation, anoid::plugin::Scale, anoid::plugin::Sphere, anoid::plugin::Spin, anoid::plugin::SpinVelocity, anoid::plugin::Velocity, and anoid::main::World. Definition at line 25 of file object.cc. References add(), children, anoid::base::AbstractWorld::loadObject(), and world.

void anoid::base::Object::listen (  const std::string &    m )

Definition at line 58 of file object.cc. References getWorld(), and anoid::base::AbstractWorld::listen(). Referenced by anoid::plugin::anoid::Pad::init().

void anoid::base::Object::receive (  Message *    m )  [virtual]

Called when a message has been sent, and this object has subscribed to it Parameters: m  the message sent Definition at line 52 of file object.cc. References children, and anoid::simple::i().

void anoid::base::Object::redraw (    )  [virtual]

Called just after update has been called on the entire world. This should draw the objects (using OpenGL). Reimplemented in anoid::plugin::Alpha, anoid::plugin::AscShape, anoid::plugin::Box, anoid::plugin::Color, anoid::plugin::Dynamics, anoid::base::Element, anoid::plugin::Position, anoid::plugin::Rotation, anoid::plugin::Scale, anoid::base::Shape, anoid::plugin::Sphere, anoid::plugin::SpinVelocity, and anoid::main::World. Definition at line 46 of file object.cc. References children, and anoid::simple::i(). Referenced by anoid::main::Anoid::runLevel().

void anoid::base::Object::update (    )  [virtual]

Called when the main loop is ready for another step. Should be used to perform any calculations prior to movement. Reimplemented in anoid::plugin::Acceleration, anoid::plugin::Dynamics, anoid::plugin::Move, anoid::plugin::Spin, anoid::plugin::SpinVelocity, anoid::plugin::Velocity, and anoid::main::World. Definition at line 40 of file object.cc. References children, and anoid::simple::i(). Referenced by anoid::main::Anoid::runLevel().

---

Member Data Documentation

std::vector<Object*> anoid::base::Object::children [protected]

Definition at line 33 of file object.hh. Referenced by add(), anoid::main::World::begin(), anoid::main::World::end(), init(), receive(), redraw(), and update().

int anoid::base::Object::ID [protected]

Definition at line 30 of file object.hh. Referenced by add().

Object* anoid::base::Object::parent [protected]

Definition at line 31 of file object.hh. Referenced by add(), anoid::plugin::Sphere::init(), anoid::plugin::Box::init(), and anoid::plugin::AscShape::init().

AbstractWorld* anoid::base::Object::world [protected]

Definition at line 32 of file object.hh. Referenced by add(), init(), and anoid::main::World::World().

---

The documentation for this class was generated from the following files:

• object.hh
• object.cc

---
